Insulation Panel E.I.F.S
is an exterior cladding system composed of an
adhesively or mechanically fixing foam insulation
board, reinforce fibre mesh, acrylic mortar base
and an outer finish coat, E.I.F.S
is also popular because it acts as a great insulator
and offering multidesign flexibility. This can
reduce energy consumption, reduce air-infiltration
and increase interior comfort. If you have ever
felt the comfort of being wrapped in a warm blanket
on a cold winter night, you have some idea of
what E.I.F.S can do for a home
or building.
E.I.F.S added to the "R-Value"
of a home or building. (R-Value
is a measurement of the resistance to heat flow;
higher the R-Value, the better materials insulating
value) Most E.I.F.S
use the insulation board with an R-Value of R-4
to R-6 per inch as the inner most layer in the
wall system. When combined with standard wall
cavity insulation, this extra layer can boost
wall insulation from R-11 to R-16 or more.
|
Zola
Coat |
|
|
Zola
Mortar |
|
Zola
Standard RFM Mesh |
|
Zola
Dobule RFM Mesh |
|
Zola
Insulation Panel |
Thermal
Efficient |
R-8
per 50mm thickness |
Thermal
Conductivity |
0.032
Kcal/m' h' c° |
|

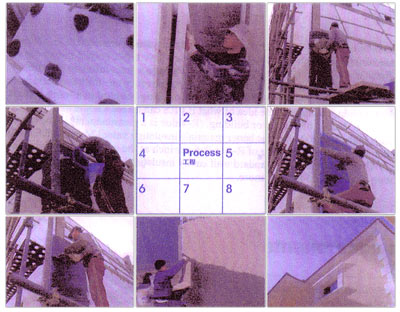

1. |
The
mixture of Zola Mortar is used as a key
mortar between concrete surface and Zola
Insulation Panel, which has a secure bonding
adhesion. |
2. |
Along
with datum lines for the surface level,
Zola Insulation Panel with key mortars
is installed cautiously. |
3. |
The
mixture of Zola Mortar is applied with
steel trowel as a surface treatment and
a bed for Zola RFM mesh. |
4.
|
When
the applied Zola Mortar Mixture is wet,
Zola RFM Mesh is inserted into the wet
layer of Zola Mortar with trowel. |
5. |
Draw
the surface of Zola RFM Mesh with trowel.
Then, Zola Mortar might cover the RFM
Mesh evently. If Zola RFM Mesh is still
appeared, add more mixture of Zola Mortar. |
6. |
Thickness
of Zola RFM Mesh can lead to make even
thickness with the mixture of Zola Mortar.
Try to achieved flat surface as much as
possible without the appearance of Zola
RFM Mesh. |
7. |
Apply
the Zola water based finish coat. Zola
Coat is designed with the system which
might be easy to cover small unevenness
and make a flat finish. |
8. |
Completion
of System that has ideal insulation way
of any building (outside insulation) and
beauty finish without crack efflorescence,
gap,etc. caused by substrate. |
|
|
|
|
